德威尔 Dwyer 3ZV1042型三通阀
Size:1˝    Supply Voltage:120 VAC

产品型号:
3ZV1042型三通阀
市场价:
¥1125.00编号:AD02I0200100004
会员价:
¥735.00(6.53折)
VIP成为VIP可享受更多优惠什么是VIP?
货期:
运费:
标准快递方式:快递标准费用
货到付款方式:快递标准费用+服务费查看运费规则

  • Size:
  • Supply Voltage:
我要买:
-
+
(件)
立即购买
加入购物车
如您需要多个型号商品一起下单,可以尝试多商品报价下单功能
变频柜

型号:3ZV1042型三通阀

参数:Size:1˝    Supply Voltage:120 VAC

品牌:德威尔

系列简介及说明

3ZV1 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems. The 3ZV1 is electrically driven to open and spring to close. Units are available in 1/2˝, 3/4˝, and 1˝ sizes with 24 or 120 VAC power supply. Easy to install these units are direct replacements for competitor units. Manual override lever is easily accessible externally. Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.
分割线

系列用途


分割线

使用说明

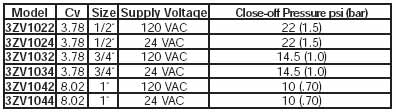

MODELS


Instructions for Operation

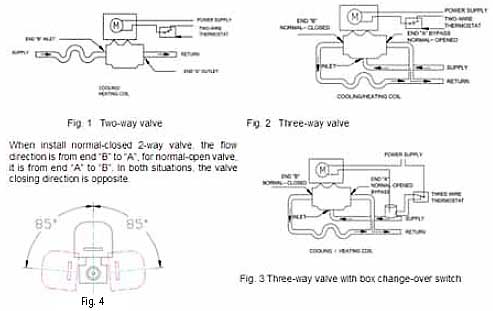

Normally-closed 2-way and diverting 3-way valve are installed as Figure 1, 2 and 3 shows. For high building, pressure –reducing valves should be installed on branch pipes at ground floor.
Note: When the valve is mounted on a horizontal pipe, the angle must be positioned less than 85°(see Figure 4).When the valve is mounted on a vertical pipe, prevent from dripping.

Manual operating lever: Move the manual operating lever slowly and hold in the retaining notch, and then the valve is in normalopened position. When the valve is first powered on, the lever goes back to the automatic position again.


When installing a diverting 3-way valve, end “B” is the supply to the coil, end “A” is the by-pass. There is no mark for an inlet. End “A” and “B” are marked on the bottom of the valve.

When the valve has an auxiliary micro switch, the wiring diagramis as follows:


MAINTENANCE
Upon final installation of the Series 3ZV1 Three-Way Zone Valves,no routine maintenance is required. A periodic check of the system calibration is recommended. The Series 3ZV1 is not field serviceable and should be returned if repair is needed (field repair should not be attempted and may void warranty). Be sure to include a brief description of the problem plus any relevant application notes. Contact customer service to receive a return good authorization number before shipping.
分割线

安装方式


分割线

购买必读


  • 购买咨询
syan35722009-10-28
咨询内容:

工作温度能达到多少高温?

doublestar回复:

环境温度:0-40℃
