型号:ZV1044型两通阀
参数:Size:1˝ Supply Voltage:24 VAC
品牌:德威尔

系列简介及说明

ZV1 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems. Zone valves are typically used in conjunction with a thermostat to control room temperature. The ZV1 is electrically driven to open and spring to close. Units are available in 1/2˝, 3/4˝, and 1˝ sizes with 24 or 120 VAC power supply. Easy to install these units are direct replacements for competitor units. Manual
override lever is easily accessible externally. Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.

系列用途


使用说明

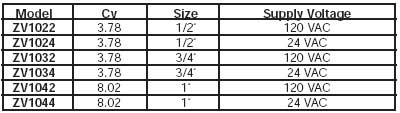

MODELS

Instructions for Operation

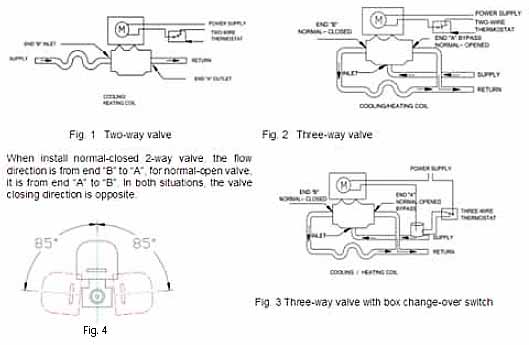

Normally-closed 2-way and diverting 3-way valve are installed as Figure 1, 2 and 3 shows. For high building, pressure reducing valves should be installed on branch pipes at ground floor. Note: When the valve is mounted on a horizontal pipe, the angle must be positioned at less than 85°(see Figure 4).When the valve is mounted on a vertical pipe, it must be prevented from dripping.
Manual operating lever: Move the manual operating lever slowly and hold in the retaining notch, and then the valve is in normalopened position. When the valve is first powered on, the lever goes back to the automatic position again.

When installing a diverting 3-way valve, end “B” is the supply to the coil, end “A” is the by-pass. There is no mark for an inlet. End “A” and “B” are marked on the bottom of the valve.

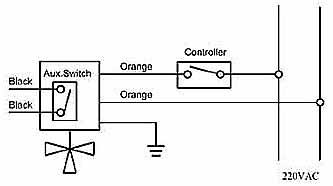

When the valve has an auxiliary micro switch, the wiring diagramis as following:

MAINTENANCE
Upon final installation of the Series ZV1 Two-Way Zone Valves, no routine maintenance is required. A periodic check of the system calibration is recommended. The Series ZV1 is not field serviceable and should be returned if repair is needed (field repair should not be attempted and may void warranty). Be sure to include a brief description of the problem plus any relevant application notes. Contact customer service to receive a return good authorization number before shipping.
